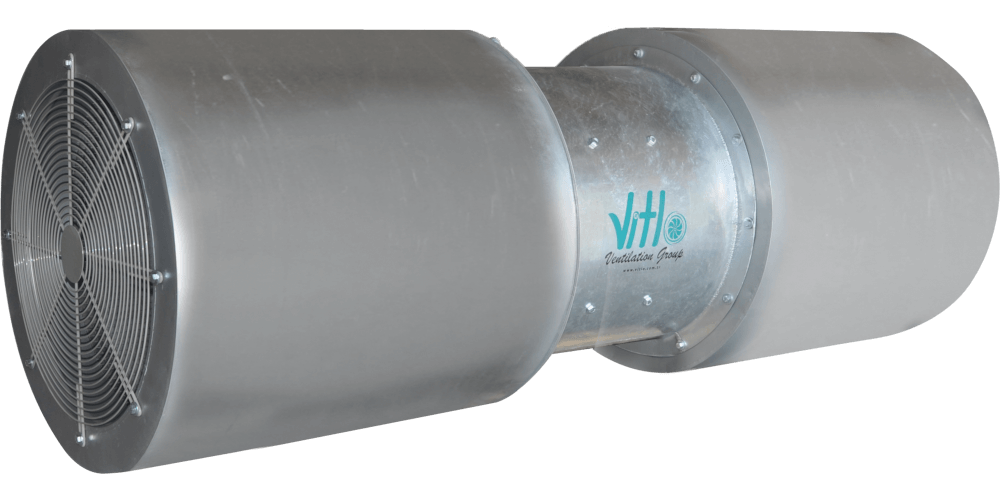

VITLO TUNEL AXF

Tunnel Type Axial Fans

VITLO TUNEL AXF

Tunnel Type Axial Fans

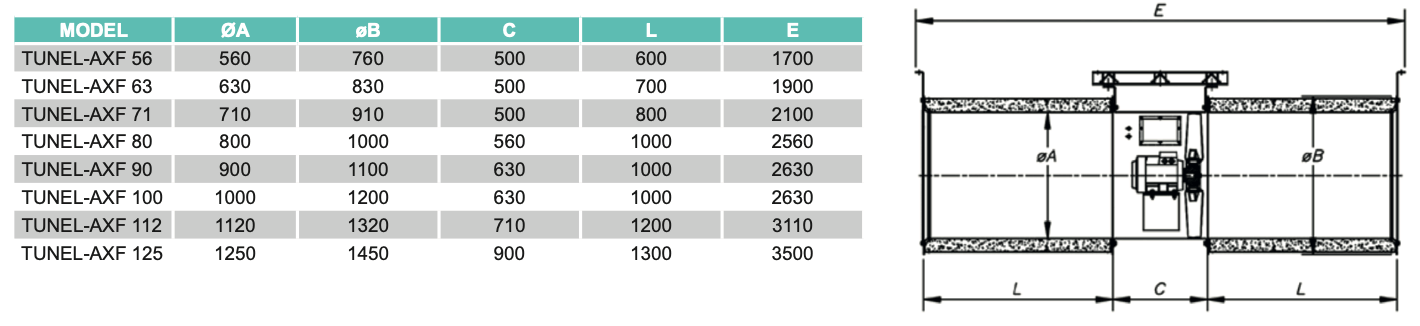

  • There are different model options between 560 mm - 1250 mm diameter.
  • It can be produced as bi-directional and double-cycle.
  • Aerofoil section, angle adjustable wings are produced by aluminum injection molding method.
  • It has a self-flanged main body without welding on both sides, in accordance with UNI ISO6580/EUROVENT 1-2 Standards.
  • The body is manufactured from hard steel and coated with hot dip galvanization as standard.
  • It has a body structure with double-sided silencers.
  • S1 normal ventilation time is continuously in the temperature range -20°C/+55°C,
  • S2 is suitable for operation in the temperature ranges of 200°C/2h, 300°C/2h, 400°C/2h in case of fire.
  • It is certified in EN 12101-3:2015 standards.

Engine

  • It is IP 55 protected, fully enclosed type with IE2/3 high efficiency self-lubricating bearings, in H insulation class.
  • For easy electrical connection, there is an external electrical connection box with IP67 protection outside the fan body.
  • It is 400V-50Hz as standard and is suitable for use with a frequency converter.

Usage areas

  • Tunnel smoke extraction systems
  • Indoor car park and garage smoke extraction systems
