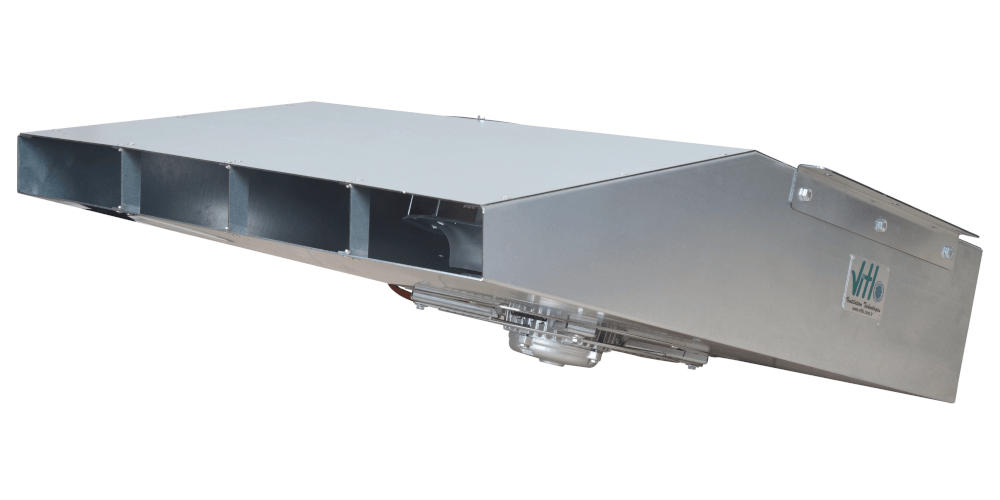

VITLO RXJ

Radial Jet Fan

VITLO RXJ

Radial Jet Fan

  • It has radial backward curved wings for maximum efficiency.
  • Backward-curved radial high-efficiency wings are manufactured from corrosion-resistant galvanized material.
  • S1 normal ventilation time is continuously in the -20oC/+55oC temperature range,
  • S2 is suitable for operation in the temperature ranges of 300oC/2h, 400oC/2h in case of fire.
  • There is a wire cage on the suction side and a deflector on the blowing side as standard.
  • It is certified in EN 12101-3:2015 standards.

Engine

  • It is IP 55 protected, fully enclosed type with IE2/3 high efficiency self-lubricating bearings, in H insulation class.
  • 4/8, 4/6 pole options are available depending on the model.
  • For easy electrical connection, there is an external electrical connection box with IP67 protection outside the fan body.
  • It is 400V-50Hz as standard and is suitable for use with a frequency converter.

Usage areas

  • General space ventilation
  • Low ceiling indoor car park and garage smoke extraction systems
