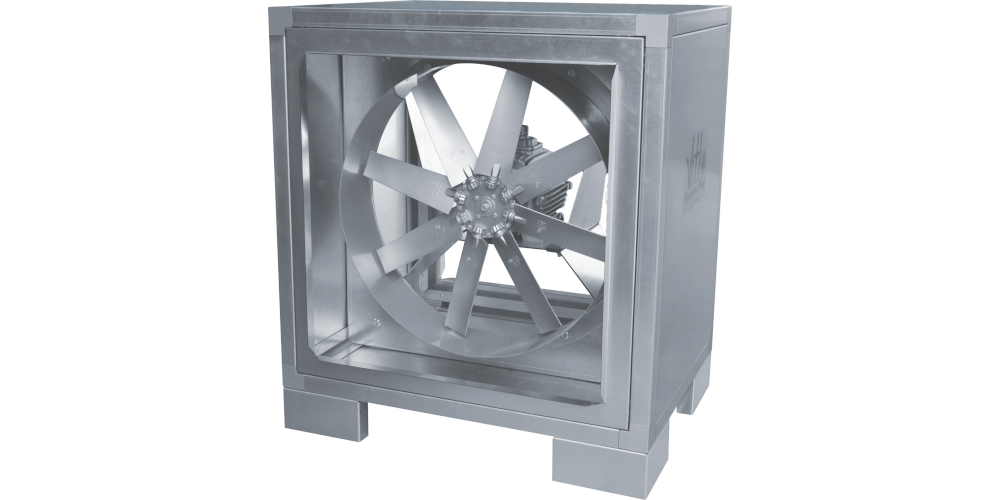

VITLO BOX AXF

Axial Cell Type Smoke Evacuation Fans

VITLO BOX AXF

Axial Cell Type Smoke Evacuation Fans

  • They are cell type fans with a structure that will not be affected by outdoor conditions and sunlight.

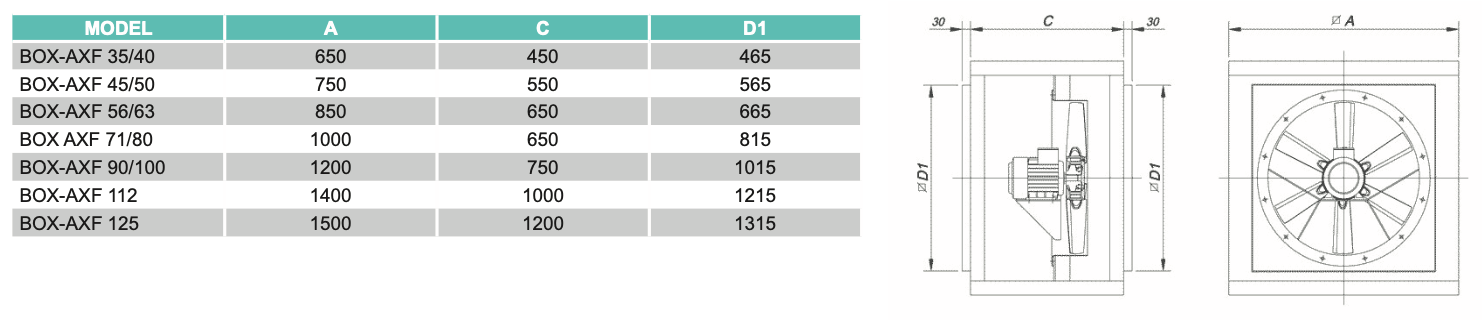

  • There are different model options between 355 mm - 1250 mm diameter.
  • Aerofoil section, angle adjustable wings are produced by aluminum injection molding method.
  • The body is manufactured from galvanized sheet metal and is of double-walled insulated type.
  • Shutter option is available for suction and discharge ports.
  • S1 normal ventilation time is continuously in the temperature range -20°C/+55°C,
  • S2 is suitable for operation in the temperature ranges of 200°C/2h, 300°C/2h, 400°C/2h in case of fire.
  • It is certified in EN 12101-3:2015 standards.

Engine

  • It is IP 55 protected, fully enclosed type with IE2/3 high efficiency self-lubricating bearings, in H insulation class.
  • For easy electrical connection, there is an external electrical connection box with IP67 protection outside the fan body.
  • It is 400V-50Hz as standard and is suitable for use with a frequency converter.

Usage areas

  • General space ventilation
  • Indoor car park and garage smoke extraction systems
  • Uses for fresh air and exhaust purposes
