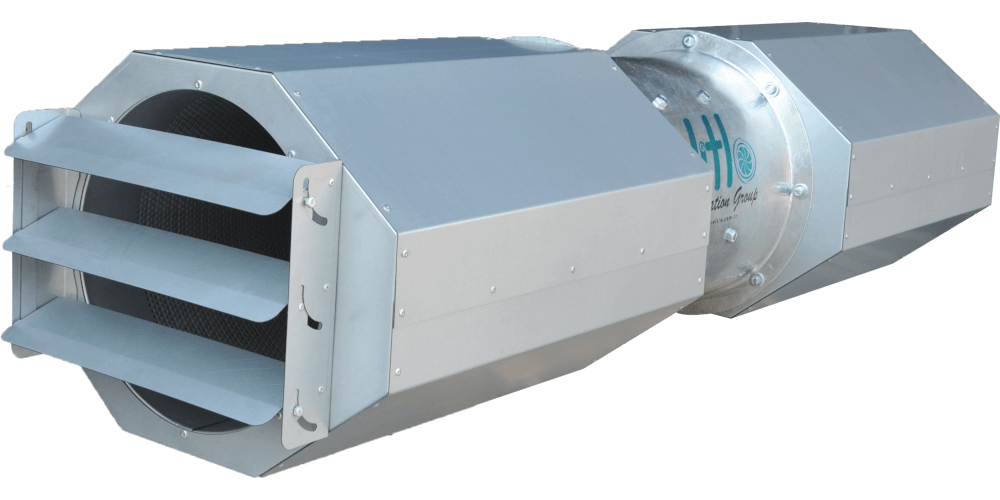

VITLO AXJ

Axial Jet Fan

VITLO AXJ

Axial Jet Fan

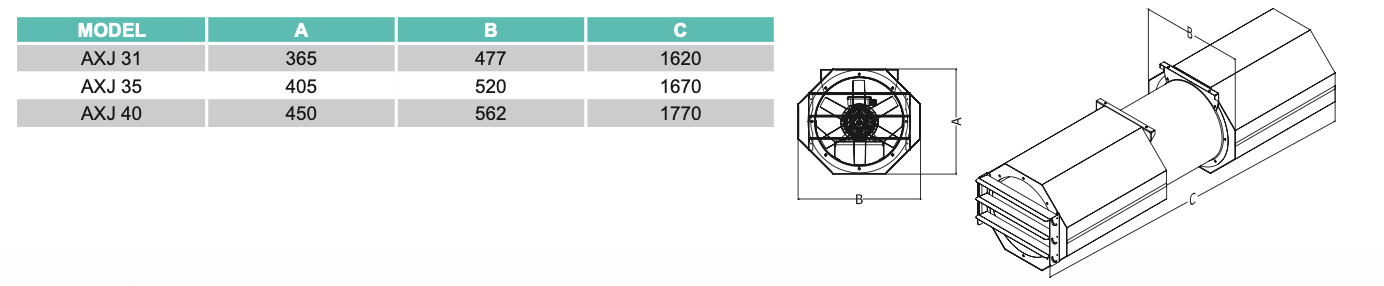

  • There are different model options in the diameter range of 315 mm - 450 mm.
  • It can be produced as bi-directional and double-cycle.
  • The body is integrated with the silencer and is made of galvanized sheet metal.
  • Aerofoil section, angle adjustable wings are produced by aluminum injection molding method.
  • S1 normal ventilation time is continuously in the temperature range -20°C/+55°C,
  • S2 is suitable for operation in the temperature ranges of 200°C/2h, 300°C/2h, 400°C/2h in case of fire.
  • There is a wire cage on the suction side and a deflector on the blowing side as standard.
  • It is certified in EN 12101-3:2015 standards.

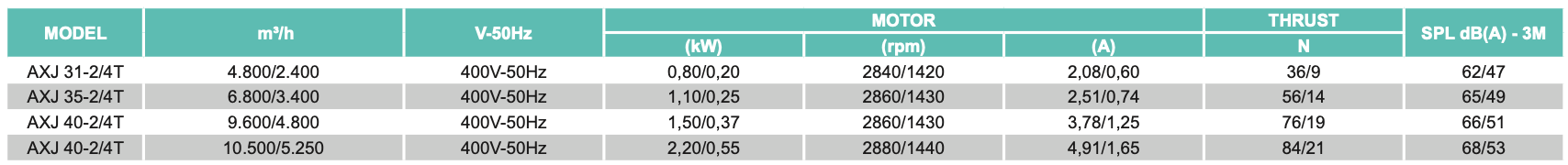

Engine

  • It is 2/4 pole, IP 55 protected, fully enclosed type with IE2/3 high efficiency self-lubricating bearing, in H insulation class.
  • For easy electrical connection, there is an external electrical connection box with IP67 protection outside the fan body.
  • It is 400V-50Hz as standard and is suitable for use with a frequency converter.

Usage areas

  • General space ventilation
  • Indoor car park and garage smoke extraction systems
